DMR RYTHM Frameset

DMR Rhythm Frame

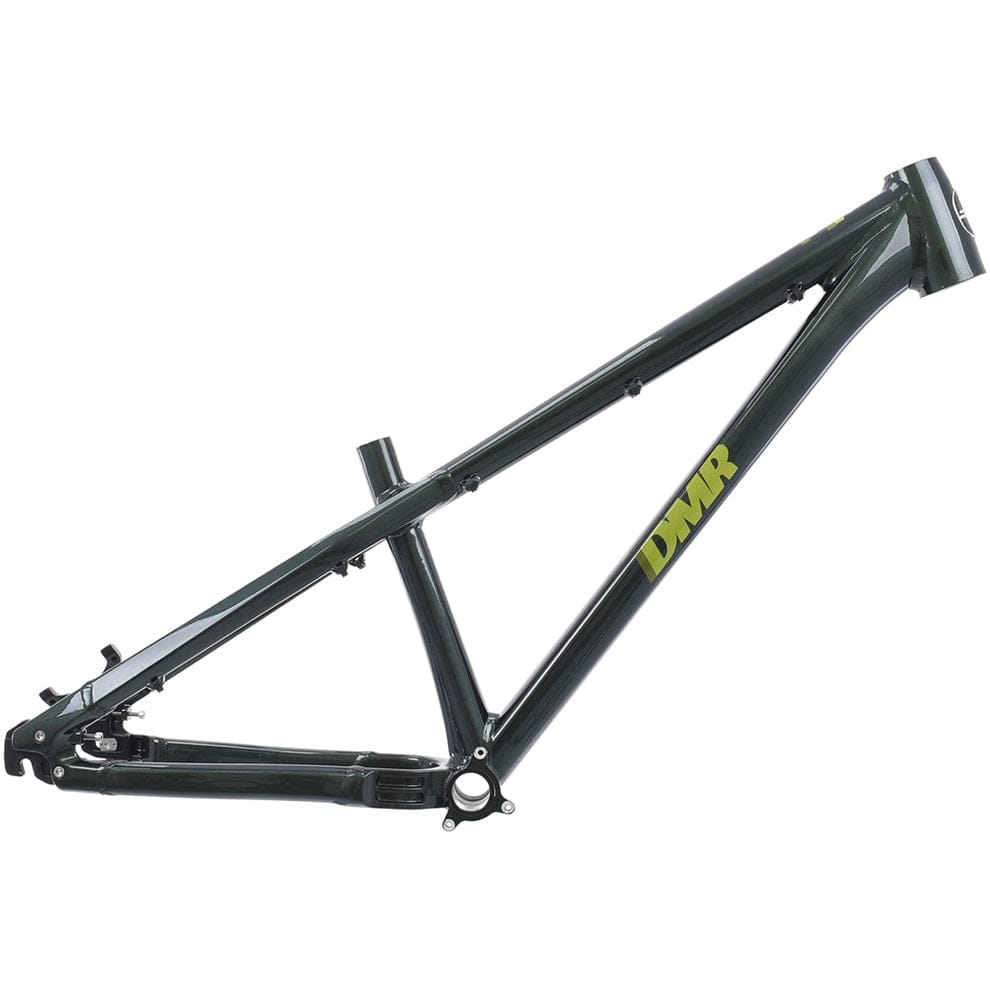

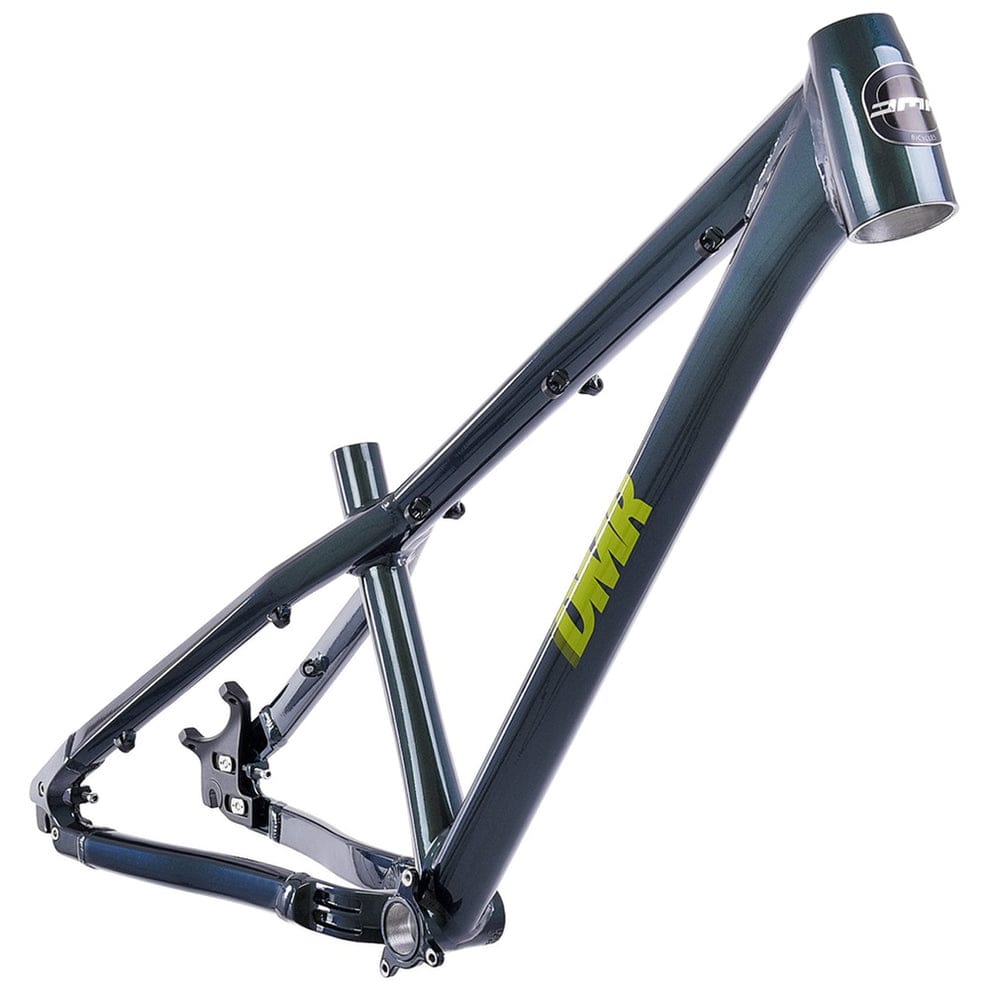

So here it is. The Rhythm is back. Only this time it moves to your beat. The NEW Rhythm is a 26” wheel aluminium JUMP/PUMP/4X/PLAY frame, built for big airs, endless laps, and elbow to elbow antics.

DMR is known for their steel hardtails. But they never rest on their laurels. The Rhythm dirt jump bike frame uses tubes made from 6061 T6 aluminium alloy. The lightness and stiffness of this tubing make it ideal for a frame that holds its own equally at the trails and the 4X track.

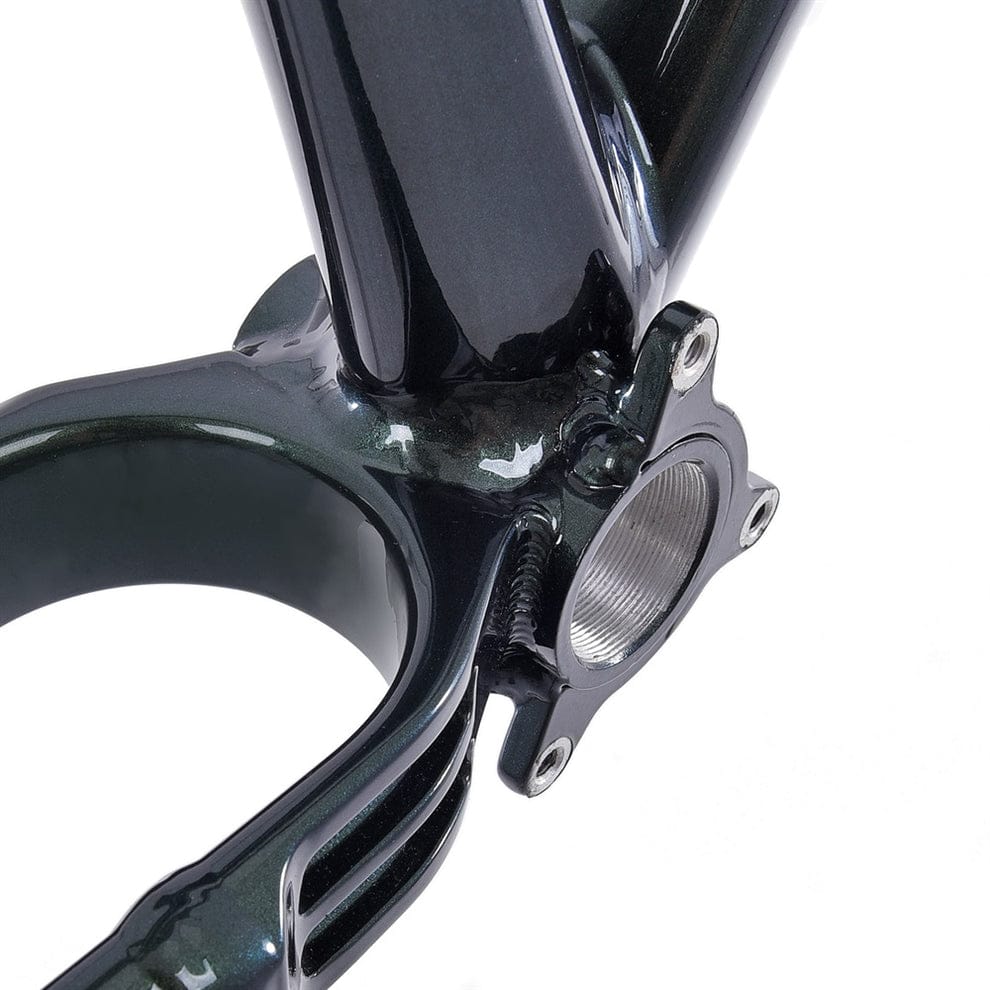

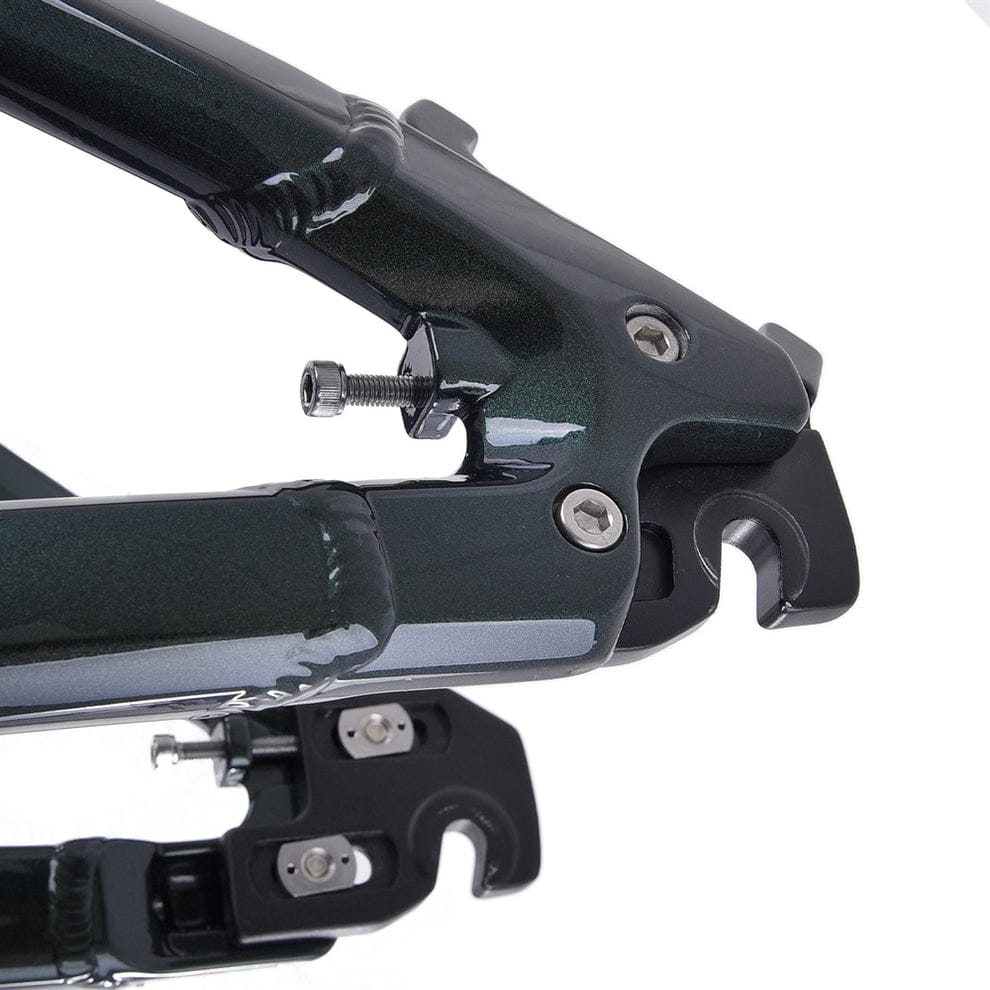

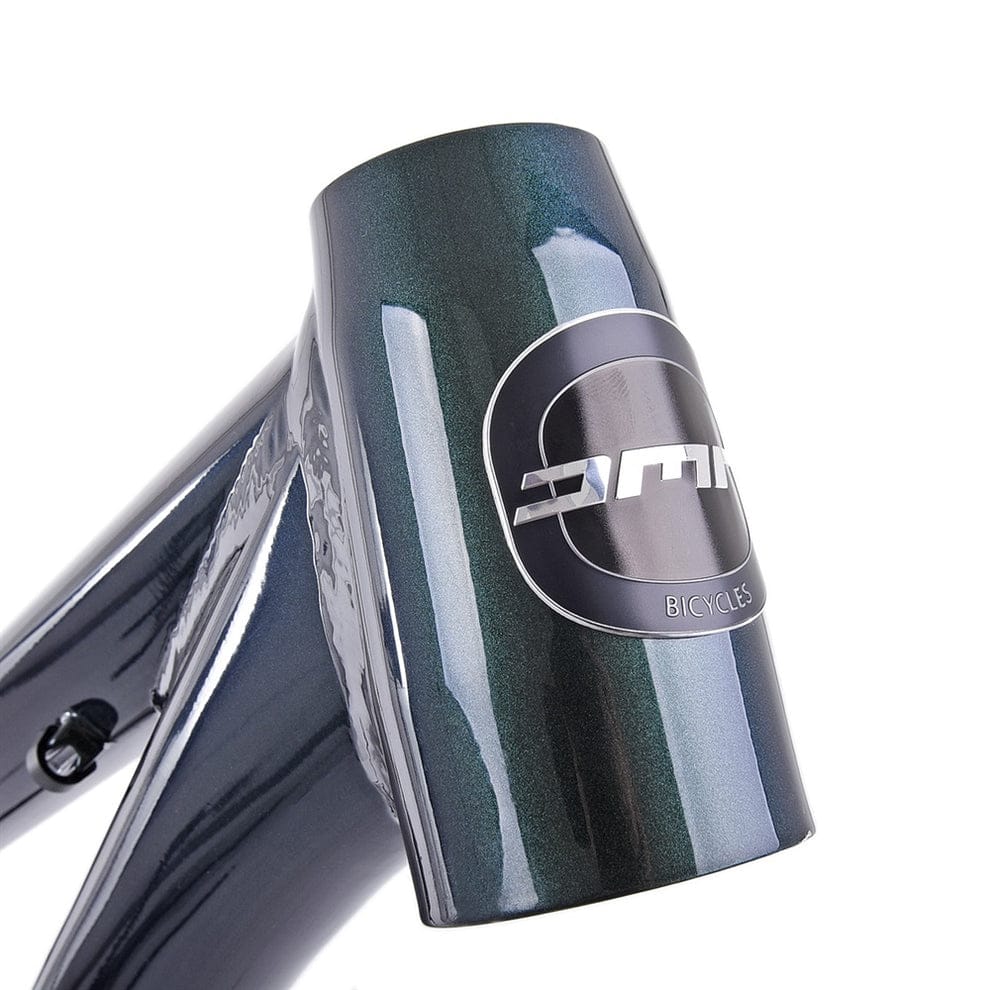

Details include a tapered headtube, machined chainstay yoke and interchangeable dropouts. You choose whether to go geared or single speed. The dropouts sit on sliding system for easy chain tension, with the added benefit of adjustable chainstay length. The Rhythm is a frame that you can dial in to suit your requirements. Available in two colours and two lengths.

Technical Details:
Frame Material: 6061 T6 Aluminium
Use: Dirt Jump/4X Race/Pump track/Street/Park/Play.
Dropouts: 142x12mm geared or 135x10mm single speed interchangable, sold separately
Fork compatibility: 100-140mm.
Wheelsize: 26”.
Tyre size compatibility: Up to 2.5”, 26″ wheels.
Headset required: Zero Stack Tapered. 44mm upper / 56mm lower.
BB Shell: BSA Threaded.
Brake attachment: Post Mount Disc 160mm.
Seat Post required: 31.6mm.
Seat Clamp: 34.9mm.
Front Derailleur: Not compatible.
Weight: 2.37kg (Long).

Geometry:
Size (dimensions in mm): Regular | Long
Head Tube Angle: 69.5° | 69.5°
Seat Tube Angle: 71° | 71°
Front Centre: 653 | 674
Top Tube Length: 561 | 579
Seat Tube Length: 330 | 330
Bottom Bracket Drop: 20 | 20
Stack: 564 | 569
Reach: 401 | 420
Head Tube Length: 115 | 120
Seat Post Size: Ø31.6 | Ø31.6
Seat Clamp Size: Ø34.9 | Ø34.9
Wheelbase: 1037 | 1058
Chain Stay Length: 385 | 385
Recommended Fork Length: 483 | 483
Recommended Fork Offset: 45 | 45

Dropout Options and Headset sold separately
